Polcd 2.8 Inch 240*320 Ips Tft Lcd Screen Spi Infterface All Free Viewing Angle Panel Display Module

Product Categories
Shenzhen P&O Technology Co., Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

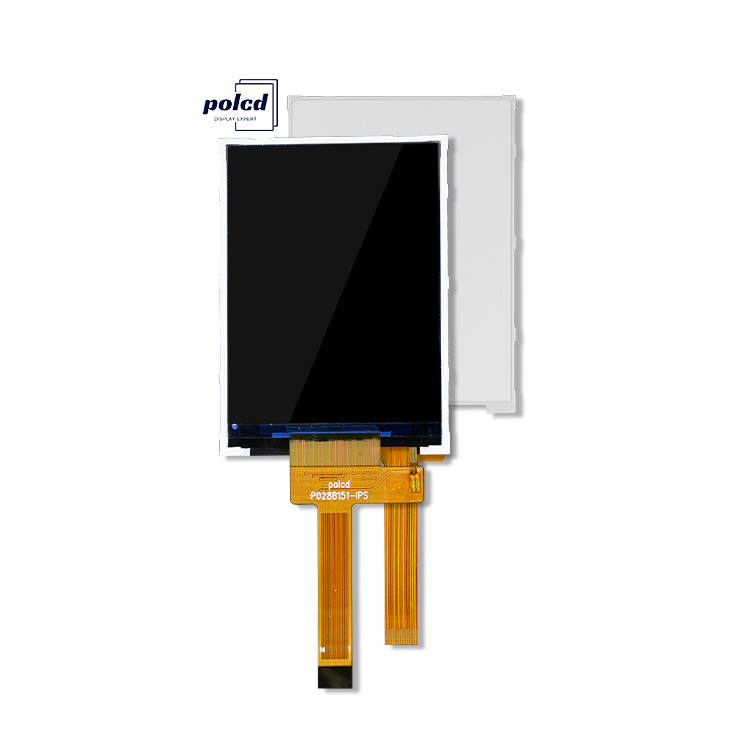

Polcd 2.8 Inch 240*320 Ips Tft Lcd Screen Spi Infterface All Free Viewing Angle Panel Display Module

Brand Name : Polcd

Model Number : P028B151-IPS

Certification : RoHS, ISO9001

Place of Origin : Shenzhen, China

MOQ : 1 piece

Price : Please contact us for latest price

Payment Terms : T/T, L/C, Credit card, PayPal, D/A, D/P, Western Union, MoneyGram

Supply Ability : 25,000 PCS per day

Delivery Time : 1-7 working days

Packaging Details : FCL size: 40*30*20cm / Sample Packaging: 20*18*13cm

Size (inch) : 2.8

Resolution : 240*320

Brightness (cd/m²) : 350 nit

Display area : 43.20(H)x57.60(V)mm

Interface : 4wire SPI

Driver Ic : ST7789P3-G6

Contact Now

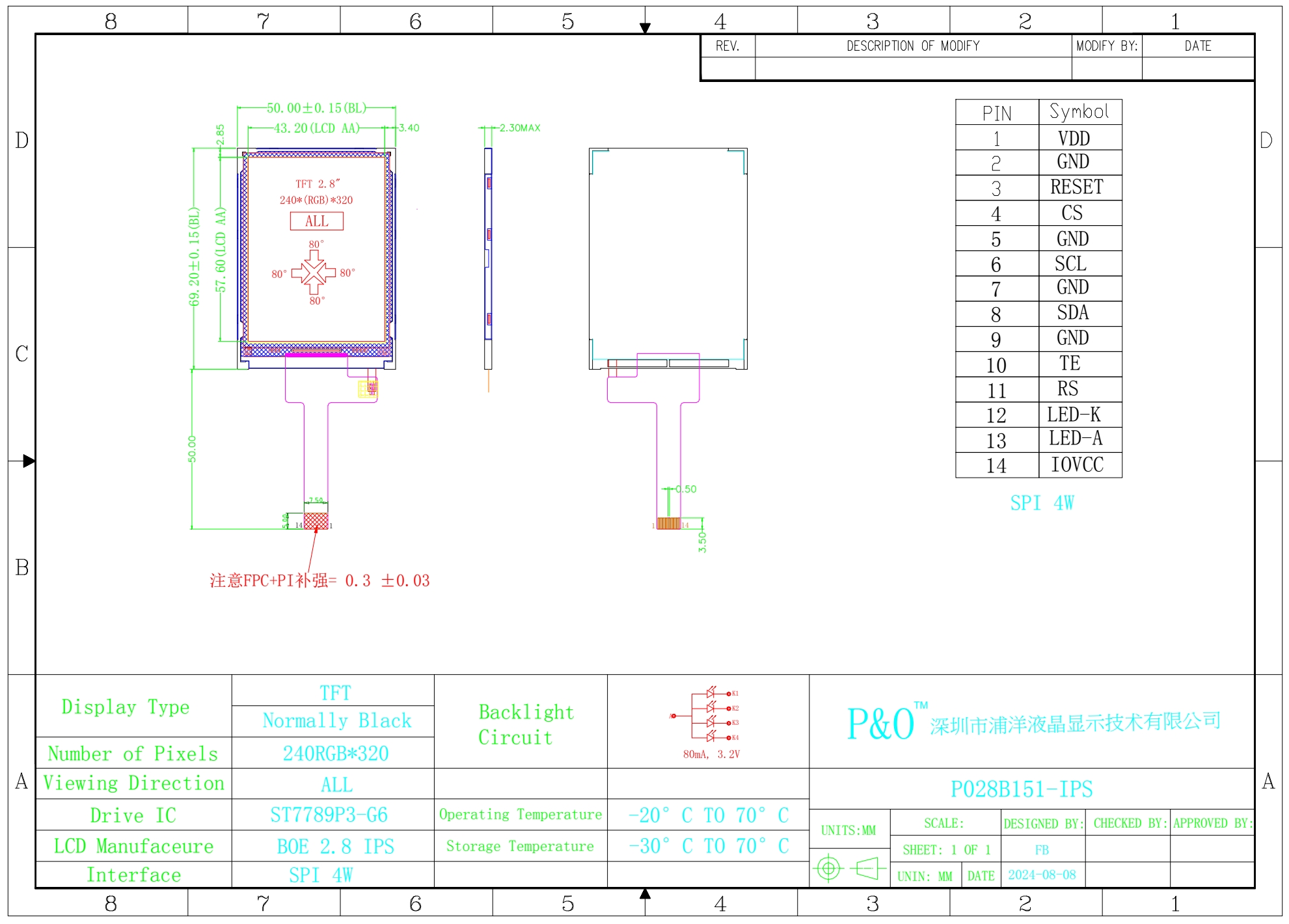

Parameter:

Model P028B151-IPS
Screen Size 2.8 inch
Number of Pixel 240RGB(H)x320(V)
Display area 43.2(H)x57.6(V)mm
Pixel pitch 0.18(H)x0.18(V)mm
Pins 14 pins
Outline Dimension 50.00x69.20x2.30mm
Pixel arrangement RGB Vertical Stripe
Display mode Normally Black
Viewing Direction(eye) ALL
Display Color 262K
Luminance(cd/m2) 350 nit
Contrast Ratio 1200:1
Interface 4wire SPI
Back-light LED Side-light type
Drive IC ST7789P3-G6
Operation Temperature -20~70℃
Storage Temperature -30~80℃

Polcd 2.8 Inch 240*320 Ips Tft Lcd Screen Spi Infterface All Free Viewing Angle Panel Display ModulePolcd 2.8 Inch 240*320 Ips Tft Lcd Screen Spi Infterface All Free Viewing Angle Panel Display Module
