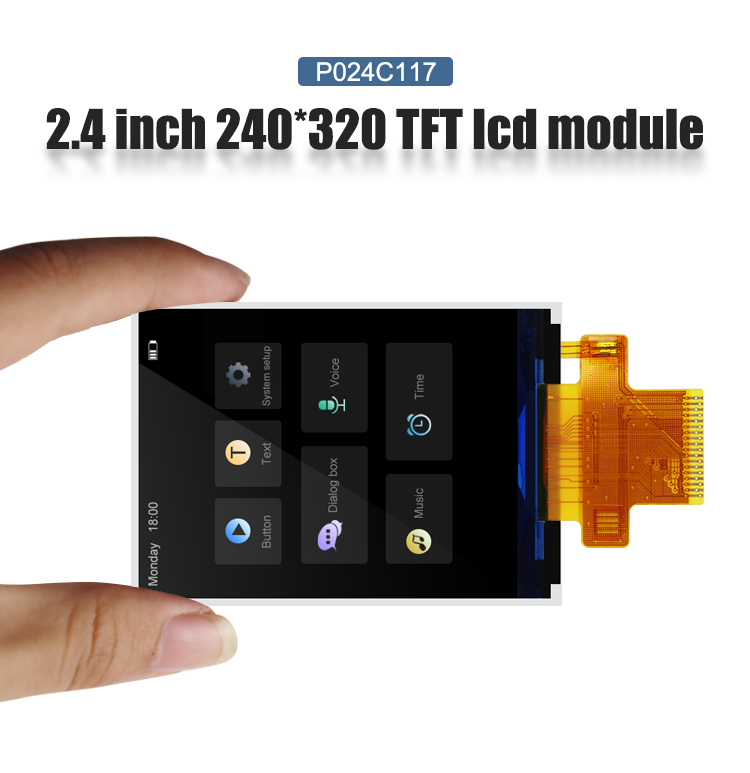

Polcd ST7789V2 2.4 Tft Display Color 262K TFT LCD Module 48.96mm

Name: Polcd ST7789V2 24 Tft Display Color 262K TFT LCD Module 4896mm
Brand: Polcd
Price: 1 USD

Polcd ST7789V2 2.4 Tft Display Color 262K TFT LCD Module 48.96mm Manufactures

Brand Name : Polcd

Model Number : P024C117

Certification : RoHS, ISO9001

Place of Origin : Shenzhen, China

MOQ : 1 piece

Price : Please contact us for latest price

Payment Terms : T/T, L/C, Credit card, PayPal

Supply Ability : 500,000 piece per week

Delivery Time : 5-8 working days

Packaging Details : 20 cm * 30 cm * 40 cm

P/N : P024C117

Size (inch) : 2.4

Resolution : 240*320

Brightness (cd/m²) : 260

Interface : 4 Wire SPI

Driver Ic : ST7789V2

Contact Now

New published Industrial Touch Screen for commercial and industrial use. Our TFT LCD has a 2.4 inch diagonally. The resolution of our tft lcd is 240 * 320. The normal brightness is 260 nits under the test of laboratory. The Interface of this LCD is 4 Wire SPI. We can also customize other types of interfaces and FPCs for you. The ST7789V2 driver IC provides on-chip storage and power system. If your products need to work under a temperature from -20°C to 70°C, then it can meet your needs.

Polcd ST7789V2 2.4 Tft Display Color 262K TFT LCD Module 48.96mm

P/N	P024C117
Size(inch)	2.4
Resolution	240*320
Active Area(mm)	36.72*48.96
Pixel pitch(um)	51*153
Outline Dimension(mm)	42.7260.262.30
Pixel arrangement	RGB Vertical Stripe
Display Mode	Normally White
Viewing Angle	12 0'CLOCK
Display colors	262K
Brightness (cd/m²)	260
Contrast Ratio	250:1
Interface	4 Wire SPI
Back-light	LED Side-light type
Driver Ic	ST7789V2
Operation Temperature(°C)	-20~70
Storage Temperature(°C)	-30~80
Response time(ms)	30
Pin Number	18

Hot selling P/N	Size (inch)	Resolution	Interface
N096-1608TBBIG11-H13	0.96	80*160	4 Line SPI
P114H002	1.14	135*240	4 Wire SPI
N133-2424TCBIG01-H12	1.33	240*240	4 Wire SPI
P169H002-CTP	1.69	240*240	4 Line SPI
P177C011	1.77	800*480	RGB 24bit
P020H017-IPS	2	240*320	MCU 8BIT
HINK-E0213A189-A0	2.13	122*250	3 Line SPI 4 Line SPI
P022H002	2.2	240*320	4 Line SPI
P023H005-V2	2.31	320*240	8080 MCU 16bit
EO-DIS-TFT24V03	2.4	240*320	8080 MCU 8bits
P027-40-V2	2.7	960*240	RGB 8bit
P028H042	2.8	240*320	MCU 8/16bit SPI3/4-wire
P032010A	3.2	320*820	SPI+16BIT RGB
P035C013-CTP	3.5	320*480	8080 MCU 16bit
P035M048-IPS	3.5	320*480	18BIT RG
P043B018	4.3	800*480	RGB 24bit
P050B028-IPS-CTP	5	800*480	RGB 24bit
P055H018-IPS-V3	5.5	720*1280	MIPI
P070C012	7	800*480	RGB 24bit
T10150UX-V01	10.1	1024*600	RGB 24bit

FAQ

Q: Can we customize product? What cost will be included?
A: The product can be customized. However, TFT LCD module has different tooling cost which includes FPC, Touch screen, backlight, bezel and so on.

Q: I want make sure some information before order, where should I find the files or datasheet?
A: The easiest way is contact our sales then we will provide any files if you need quickly.

Q: What is your delivery method?
A: EXW Shenzhen by DHL/ UPS/ FedEx/ TNT and any other method you want. Or ship the goods to your forwarder in China mainland and Hong Kong.

Q: What kind of packaging? Will the transport process be damaged?
A: Packed in anti-static bags with foam box to ensure safety in transportation.
