Polcd 1.77 Inch Tft 128*160 Color 262K Rgb Lcd Display Normally Black

  • 1
  • 2
  • 3

Brand Name : Polcd

Model Number : P177C011

Certification : RoHS, ISO9001

Place of Origin : Shenzhen, China

MOQ : 1 piece

Price : Please contact us for latest price

Payment Terms : T/T, L/C, Credit card, PayPal

Supply Ability : 500,000 piece per week

Delivery Time : 5-8 working days

Packaging Details : 20 cm * 30 cm * 40 cm

P/N : P177C011

Size (inch) : 1.77

Resolution : 128*160

Brightness (cd/m²) : 300

Interface : RGB 24bit

Driver Ic : ST7262

Contact Now

This LCD Touch Panel is a color-active matrix thin-film transistor (TFT) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. If your product requires a size 1.77 inch then our lcd is just what you need. Improve your product design by adding our 800 * 480 resolution product. QC department measured the luminance is 300 nits under normal operating.

P/N P177C011
Size(inch) 1.77
Resolution 128*160
Active Area(mm) 28.03*35.04
Pixel pitch(um) 73*219

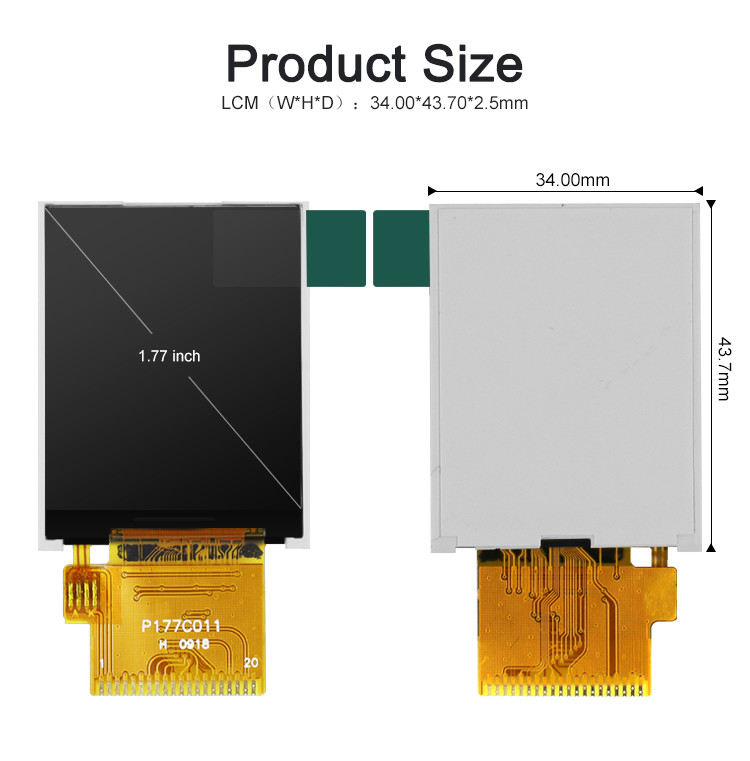

Outline Dimension(mm) 34.00*43.70*2.5
Pixel arrangement RGB Vertical Stripe
Display Mode Normally Black
Viewing Angle ALL
Display colors 262K
Brightness
(cd/m²)		 300
Contrast Ratio 300:1
Interface RGB 24bit
Back-light LED Side-light type
Driver Ic ST7262
Operation Temperature(°C) -20~70
Storage Temperature(°C) -30~80
Response time(ms) 30
Pin Number 40

This type of RGB 24bit can be suitable for a variety of scenarios. From the datasheet we can know the driver of the LCD is is ST7262. THE lowest operating temperature can reach -20°C (-4°F) and highest is 70°C (158°F).

Polcd 1.77 Inch Tft 128*160 Color 262K Rgb Lcd Display Normally Black


Q: I cannot find the size, the interface or the FPC I need, is it possible for customization?
A: Of course you can customize. Just tell us what you need. However, TFT LCD module has different tooling cost which includes FPC, Touch screen, backlight, bezel and so on.

Q: Where can I get the datasheet, initialization code, product drawings, test reports and other technical files?
A: Please contact our sales and we will provide any files if you need.

Q: What is your delivery method?
A: EXW Shenzhen by DHL/ UPS/ FedEx/ TNT and any other method you want. Or ship the goods to your forwarder in China mainland and Hong Kong.

Q: What kind of packaging? Will the transport process be damaged?
A: Packed in anti-static bags with foam box to ensure safety in transportation.
