Polcd 300 Nits Tft Screen 65K 2.4 Inch Tft Lcd Ili9341V 16 Bit

  • 1
  • 2
  • 3

Brand Name : Polcd

Model Number : P024C015-V2

Certification : RoHS, ISO9001

Place of Origin : Shenzhen, China

MOQ : 1 piece

Price : Please contact us for latest price

Payment Terms : T/T, L/C, Credit card, PayPal

Supply Ability : 500,000 piece per week

Delivery Time : 5-8 working days

Packaging Details : 20 cm * 30 cm * 40 cm

P/N : P024C015-V2

Size (inch) : 2.4

Resolution : 240*320

Brightness (cd/m²) : 300

Interface : 8080 MCU 8bit/16bit

Driver Ic : ILI9341V

Contact Now

This Industrial Touch Screen is a color-active matrix thin-film transistor (TFT) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. If your product requires a size 2.4 inch then our lcd is just what you need. Improve your product design by adding our 240 * 320 resolution product. QC department measured the luminance is 300 nits under normal operating.

P/N P024C015-V2
Size(inch) 2.4
Resolution 240*320
Active Area(mm) 36.72*48.96
Pixel pitch(um) 60*180

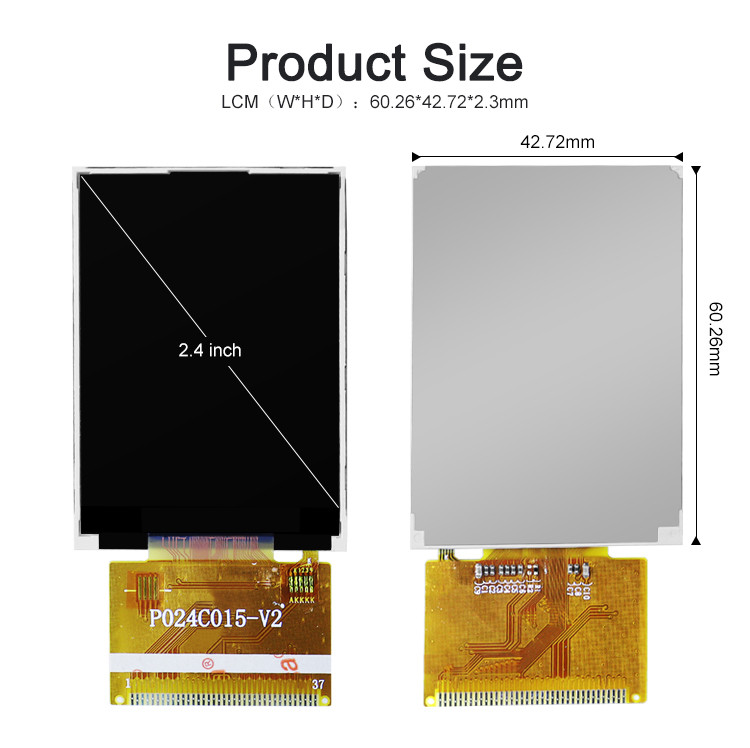

Outline Dimension(mm) 42.72*60.26*2.30
Pixel arrangement RGB Vertical Stripe
Display Mode Normally Black
Viewing Angle 12 0'CLOCK
Display colors 65K
Brightness (cd/m²) 300
Contrast Ratio 600:1
Interface 8080 MCU 8bit/16bit
Back-light LED Side-light type
Driver Ic ILI9341V
Operation Temperature(°C) -20~70
Storage Temperature(°C) -30~80
Response time(ms) 35
Pin Number 37

This type of 8080 MCU 8bit/16bit can be suitable for a variety of scenarios. From the datasheet we can know the driver of the LCD is is ILI9341V. THE lowest operating temperature can reach -20°C (-4°F) and highest is 70°C (158°F).

Polcd 300 Nits Tft Screen 65K 2.4 Inch Tft Lcd Ili9341V 16 Bit


Q: I cannot find the size, the interface or the FPC I need, is it possible for customization?
A: Of course you can customize. Just tell us what you need. However, TFT LCD module has different tooling cost which includes FPC, Touch screen, backlight, bezel and so on.

Q: I want make sure some information before order, where should I find the files or datasheet?
A: The easiest way is contact our sales then we will provide any files if you need quickly.

Q: Do you have products in stock? How long will it take for delivery?
A: Our inventory is mainly raw materials, semi-finished and a small number of finished products. After payment, sample available in stock will be sent within 3 days; Small batch delivery takes 2-3 weeks; Large batch delivery takes 3-4 weeks. Our sales will serve you these details before shipping.

Q: What kind of packaging? Will the transport process be damaged?
A: Packed in anti-static bags with foam box to ensure safety in transportation.
